20 Feet Konteyner / 20 Feet DC Container
Uzunluk 5,897 mm 19 ft 4.17 in
Genişlik 2,348 mm 7 ft 8.44 in
Yükseklik 2,390 mm 7 ft 9.90 in
Kapı Açılışı
Genişlik 2,336 mm 7 ft 8.01 in
Yükseklik 2,280 mm 7 ft 5.45 in
Ağırlık
Max Brüt 30,480 kg (24,000 kg) 67,200 lb (52,910 lb)
Dara 2,240 kg (2,290 kg) 4,940 lb (5,050 lb)
Max Yükleme 28,240 kg (21,710 kg) 62,260 lb (47,860 lb)
Yükleme Hacmi 33.0 metre küp 1,169 feet küp
NOT: YUKARIDA Kİ BİLGİLER KONTEYNERİN HAM HALİ İÇİN GEÇERLİDİR.
İÇ TASARIM
-18°C Oda için:
12 cm Poliüretan dolgulu sandviç panel,
Zemin isteğe bağlı ( Plywood Kaplamalı, Baklava Dilimli Alüminyum Çeta Panel veya Beton )
Soğutma Grubu 7 Hp Hermetik.
+4°C Oda için:
8 cm Poliüretan dolgulu sandviç panel,
Zemin isteğe bağlı ( Plywood Kaplamalı, Baklava Dilimli Alüminyum Çeta Panel veya Beton )
Soğutma Grubu 5 Hp Hermetik.
-40°C Oda için:
18 cm Poliüretan dolgulu sandviç panel,
Zemin isteğe bağlı ( Plywood Kaplamalı, Baklava Dilimli Alüminyum Çeta Panel veya Beton )
Soğutma Grubu projeye göre farklılık göstermektedir.

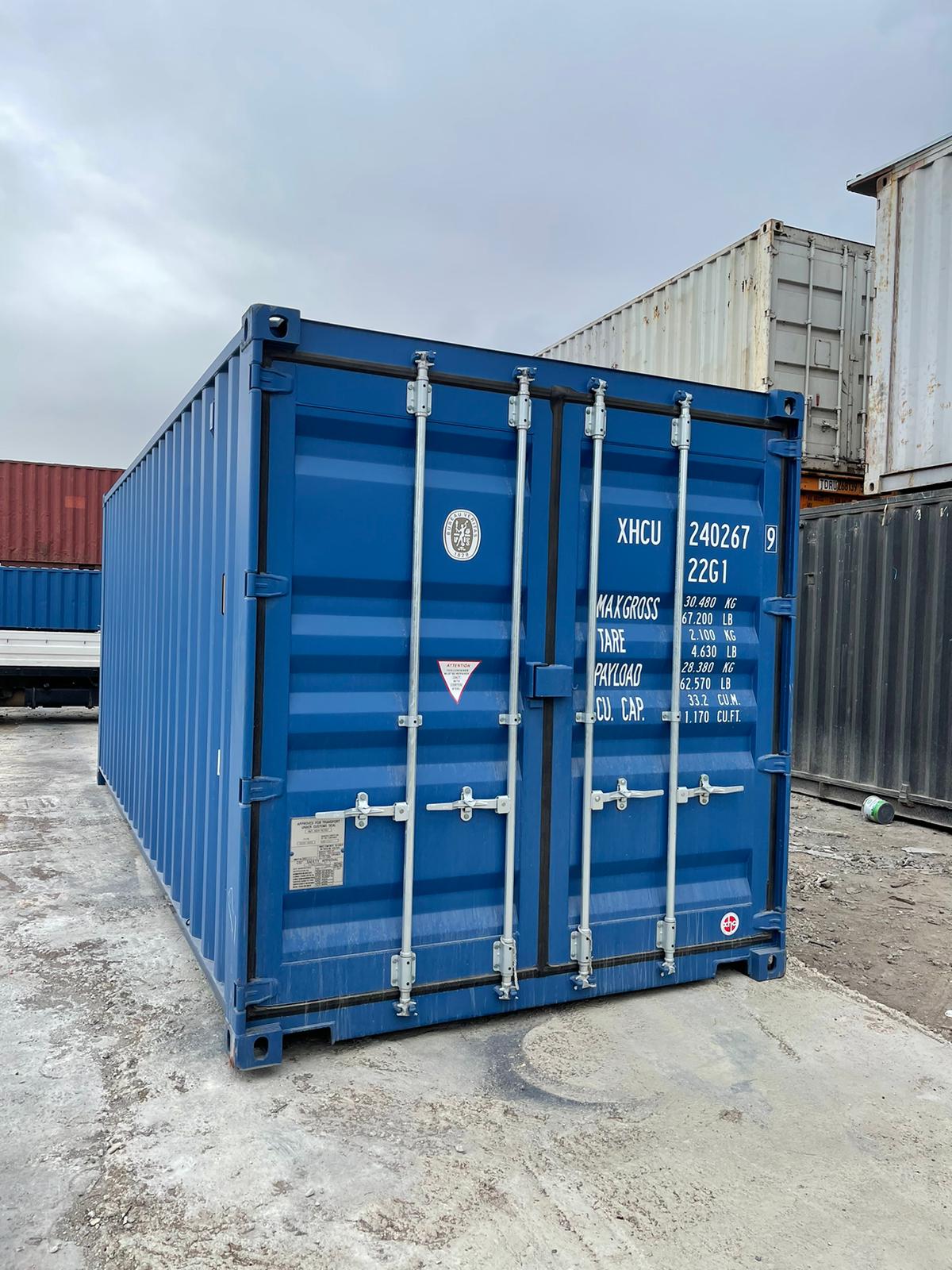

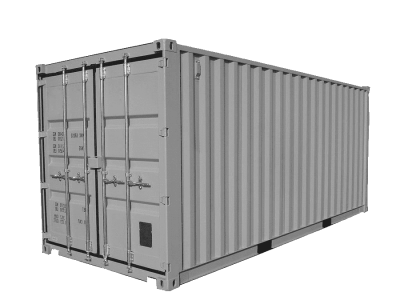

20 Feet Container / 20 Feet DC Container
Length: 5,897 mm (19 ft 4.17 in)
Width: 2,348 mm (7 ft 8.44 in)
Height: 2,390 mm (7 ft 9.90 in)
Door Opening Dimensions
Width: 2,336 mm (7 ft 8.01 in)
Height: 2,280 mm (7 ft 5.45 in)
Weight
Max Gross: 30,480 kg (24,000 kg) / 67,200 lb (52,910 lb)
Tare: 2,240 kg (2,290 kg) / 4,940 lb (5,050 lb)
Max Load: 28,240 kg (21,710 kg) / 62,260 lb (47,860 lb)
Loading Volume: 33.0 cubic meters (1,169 cubic feet)
NOTE: The specifications above apply to the container's raw form.
IMPORTANT: After converting the container into a cold storage room, there will be a reduction in volume depending on the room specifications.
For more details, please contact us.

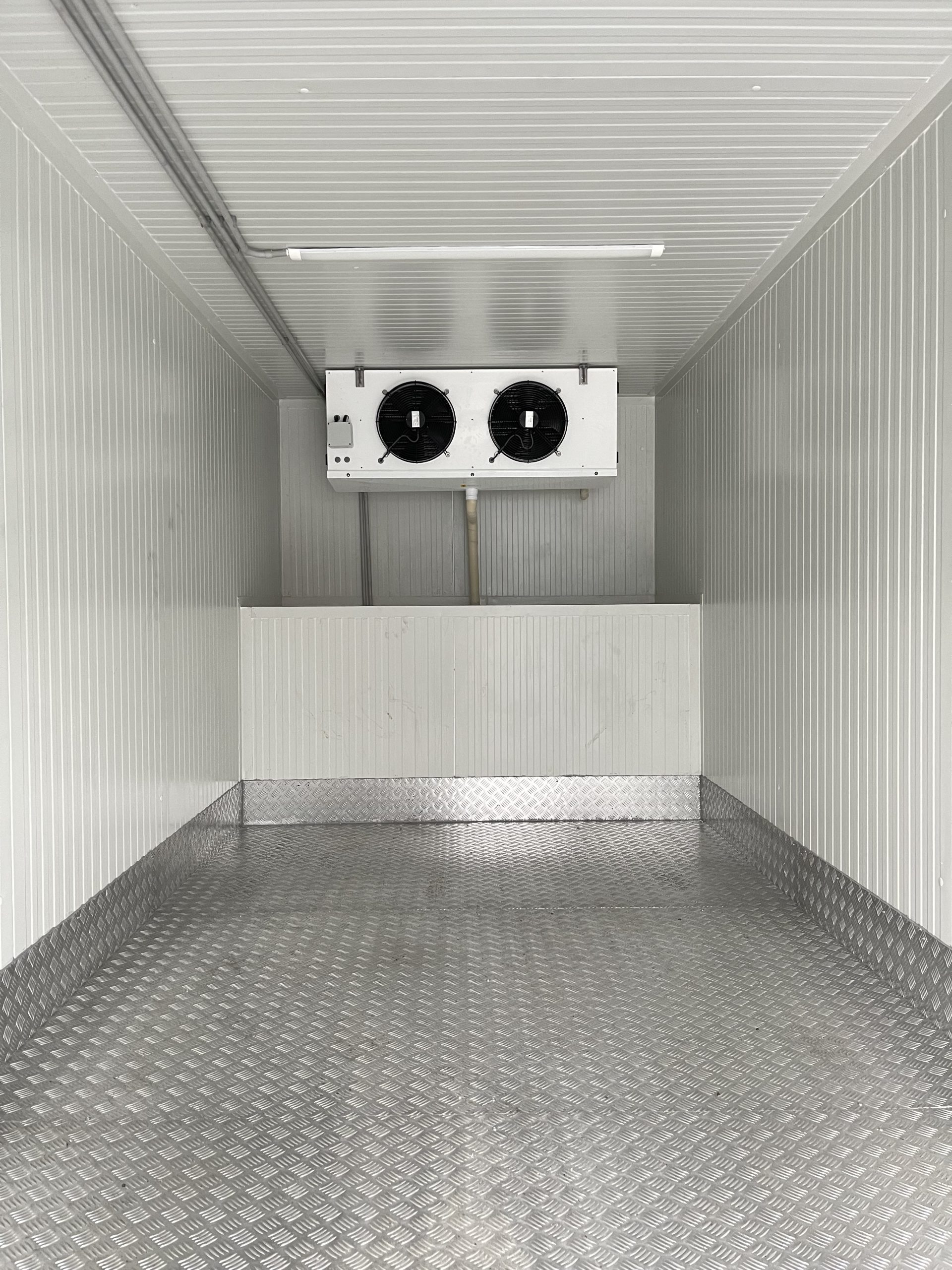

INTERIOR DESIGN
For -18°C Room:
- 12 cm polyurethane-filled sandwich panel
- Optional flooring: Plywood-covered, diamond-pattern aluminum sheet, or concrete
- Cooling unit: 7 HP hermetic
For +4°C Room:
- 8 cm polyurethane-filled sandwich panel
- Optional flooring: Plywood-covered, diamond-pattern aluminum sheet, or concrete
- Cooling unit: 5 HP hermetic
For -40°C Room:
- 18 cm polyurethane-filled sandwich panel
- Optional flooring: Plywood-covered, diamond-pattern aluminum sheet, or concrete
- Cooling unit varies depending on the project requirements.
